Light Bar

It is becoming increasingly important that work lighting does NOT affect control systems, hand-held communications, cameras, on-board computers / processors, GPS, and other radio sensitive equipment. This lamp surpasses CISPR 25 Class 3 interference suppression ratings, one of the highest level achievable within the automotive industry.
Note: If end feet mounting is preferred, see below linked mounting bracket to change from bottom rail mounting to end feet mounting.
DRL Daytime Running Light Function (this function dims down the lamp output)
Combination beam pattern (both Flood and Spot) E-mark approved
Anti-glare reflective optical design, prevents blinding of oncoming traffic
Ultra thin - housing is only 50mm high (84mm including bolts), provides a lighting solution for tight, restricted clearance applications Beam Pattern: Combination (both Flood and Spot)
Screwless, light weight design
Aluminium housing with fishtail style heat sink for superior heat dissipation
Anti-shock, anti-vibration, IP68

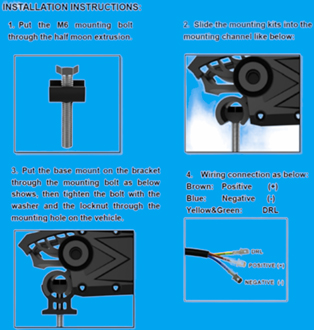

Easy mounting, innovative bottom bracket single bolt and washer design
Bottom rail mounting: M6 bolt
LED: IOW Osram 6000K
Voltage: 10V-32V
Lens: Virtually unbreakable UV resistant PC lens
Bracket: Stainless steel
Housing: Die cast aluminium alloy heat sink
Connection: Deutsch connector 3 pin
IP Rating: IP 68
Operationg Temperature: -40 degree to +85 degree
Vibration: 15Grms 24-2000Hz
Shock: 60G
Lifespan: 50,000 hrs
Protection: Reverse polarity, EMC interference, voltage & current surge
Bracket: Unique underneath rail mounting. Pendulum 30 degree adjustable mounting angles Lumens: 270001m
Working Current 22.5A@ 12V / 11.25A @ 24V
DRL Mode Lumens: 3701m
DRL Current 0.333A @ 12V / 0.167A@ 24V
