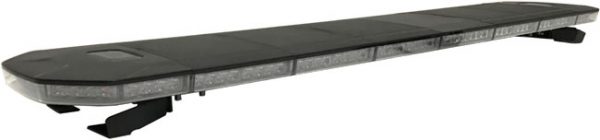

Light bar beacon

Compliance: ECE RIO, CISPR 25 Class 3, ECE R65 Class 1, SAE J845 Class 1
Rail mount channels enable mounting brackets to be positioned in the desired location anywhere along the length of the lightbar (see second image above)
Attractive sleek super slim low profile 'stealth' design
Warning Patterns: 9 flash patterns
Voltage: 12-24V
Power Consumption: IOOW (varies with flash pattern)
Max Current: 8.4A @ 12V DC / 4.2A @ 24V DC
Ingress Protection: IP67
Cable Length: Fixed: 2500mm of sheathed multi-core cable Operating Temperature: -40— +65
Flash Pattern Selection
Press the ON button, the lightbar works and flashes normally.
When the lightbar is flashing normally, press the pattern switch button to change the flashing mode.
Press the pattern which button for 5 seconds and then loose the button,

Wire Colour & Function

The wiring configuration is shown below. A cigarette plug is used to control the on/off function.
The black (negative) wire is connected to the battery ground.
Red - Positive(+)
Black - Negative(-)
Yellow - Pattern Switch
