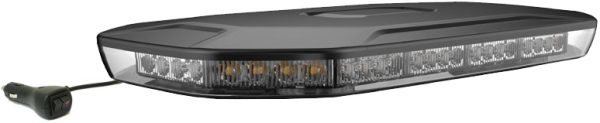

Light bar beacon

"Attractive sleek super slim low profile 'stealth' design
Warning Patterns: 12 flash patterns
Voltage: 12-24V
Power Consumption: 35W (varies with flash pattern)
Max Current: 2.9A@ 12V DC / 1.5A @ 24V DC
Ingress Protection: IP67
Cable Length: Fixed: 2500mm of sheathed multi-core cable Dual Mounting: Fixed bracket mount / magnetic mount (note: not supplied with magnet, requires purchase of optional magnets - see below linked )
Press the ON button, the lightbar works and flashes normally.
When the lightbar is flashing normally, press the pattern switch button to change the flashing

Cruise (30% brightness by night)

Wire Colour & Function

The wiring configuration is shown below. A cigarette plug is used to control the on/off function.
The black (negative) wire is connected to the battery ground.
Red - Positive(+)
Black - Negative(-)
Yellow - Pattern Switch"
